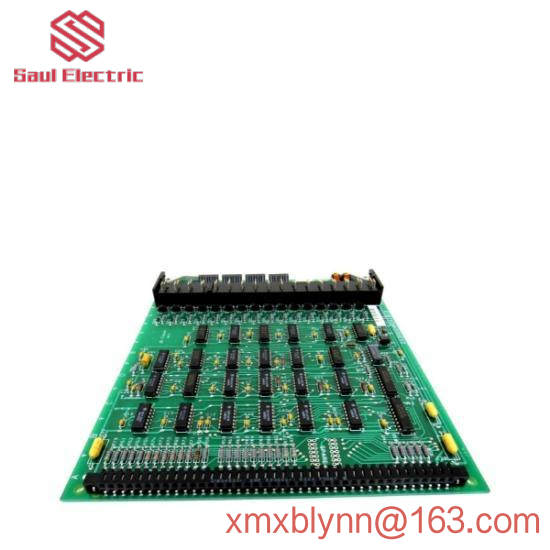

GE DS3800HISA – Isolated Input Module, Designed for Precision Control Applications

Model Number:DS3800HISA

Manufacturer:General Electric (GE)

Module Type:Input

Isolation Voltage:2500 Vrms

Number of Inputs:8

Input Type:Digital

Operating Temperature Range:-40°C to +70°C

Power Consumption:Max 1 W

Connection Type:DB9 Connector

Dimensions:84 mm x 51 mm x 27 mm

Weight:Approx. 100 g

    The GE-FANUC DS3800HISA Isolated Input Module is a critical component for any industrial control system, offering robust protection against electrical noise and ensuring the integrity of signal transmission.

    Each input channel is equipped with opto-coupling technology, which provides a high level of isolation, ensuring the safety of operators and minimizing the risk of electrical accidents.

    With a wide operating temperature range from -20°C to +60°C and a humidity tolerance of 5% to 95% non-condensing, this module is designed for use in a variety of industrial environments, from harsh manufacturing floors to temperature-controlled laboratories.

    Featuring a compact design, the DS3800HISA is easy to integrate into existing systems, and its compatibility with IEC 61131-2 programming standards makes it a versatile choice for automation projects requiring compliance with international standards.

    This input module supports a maximum current of 20mA per channel, providing flexibility in the types of sensors or switches it can interface with, making it suitable for a wide range of applications including temperature, pressure, and position monitoring.
