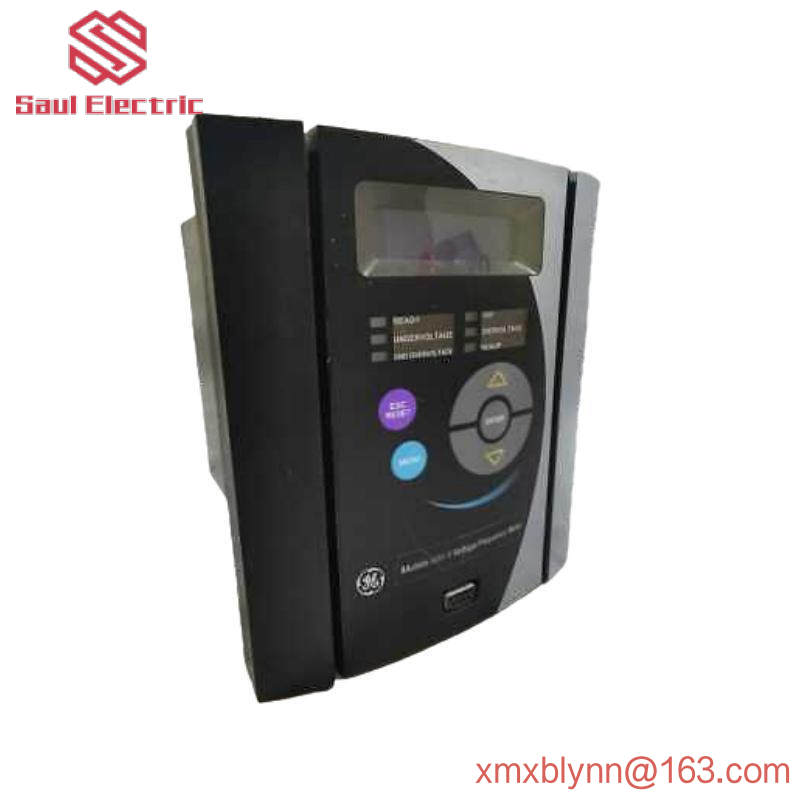

GE 369-HI-R-M-F-E-H-E Motor Management Relay with Enhanced Diagnostics and Fiber Optic Port

In stock

The GE 369-HI-R-M-F-E-H-E Motor Management Relay provides advanced protection and monitoring for industrial motors, featuring enhanced diagnostics, a fiber optic port, and optional RTD inputs.

Control Power Range:50-300 VDC / 40-265 VAC

Digital/Switch Inputs:6 optically isolated

Recordable Events:512

Fuse:3.15 A H 250 V

Ground Current Input Frequency:20 to 100 Hz

Maximum Altitude:2000 m (max)

Phase Current Inputs:1 A and 5 A secondary

RTD Inputs:3 wire, 100 Ω platinum, 100 Ω nickel, 120 Ω nickel, 10 Ω copper

Dimensions:approx : 29.6cm H x 10.7cm W x 20.5cm L

Weight:approx. 10 lbs

The GE 369-HI-R-M-F-E-H-E Motor Management Relay is a high-performance device designed specifically for industrial applications. It provides comprehensive protection and monitoring capabilities for motors and associated systems. With its advanced diagnostic features, this relay ensures optimal performance and reliability in demanding environments. Its modular design allows for flexibility in configuration, making it suitable for a wide range of industrial settings. The inclusion of RTD inputs and an optional fiber optic port enhances its versatility and connectivity options. Designed to withstand harsh conditions, the 369-HI-R-M-F-E-H-E relay features enhanced insulation and is rated for use up to 2000 meters in altitude. Its user-friendly interface and robust construction make it an ideal choice for industrial control systems.

GE 369-HI-R-M-F-E-H-E
