Operating Frequency:50 kHz
Input Voltage Range:100V to 480V AC
Insulation Resistance Range:0.1MΩ to 10GΩ
Measurement Accuracy:+/- 0.5% + 1 digit
Alarm Levels:High, Low, and Continuous
Operating Temperature:-20°C to +70°C
Humidity Range:5% to 95% non-condensing

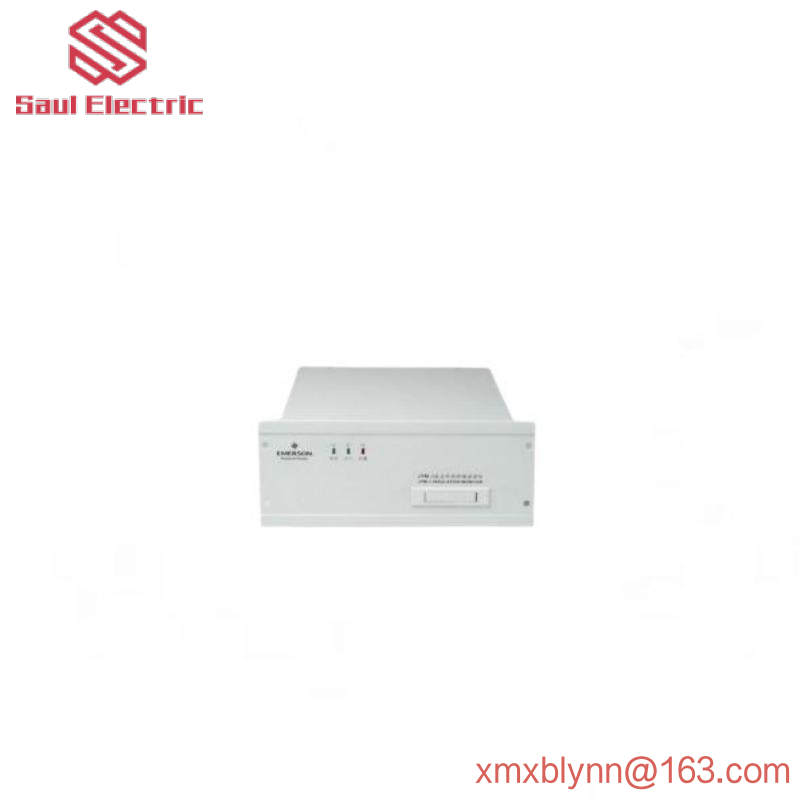

The EMERSON JYM-S2 Insulation Monitor is engineered to provide unparalleled safety and reliability in industrial electrical systems. Its continuous monitoring capability ensures that any deviations from normal insulation resistance levels are promptly detected, allowing for timely maintenance actions to prevent unexpected system failures.
Featuring an expansive monitoring range from 0 to 100MΩ, this monitor is capable of detecting even subtle changes in insulation resistance, which could indicate the onset of potential issues. With an accuracy of +/- 2% of the reading, users can trust the precise data provided for informed decision-making.
Equipped with an audible and visual alarm system, the JYM-S2 alerts operators immediately when insulation levels fall below safe thresholds. This proactive approach minimizes the risk of electrical shocks and system damage, safeguarding both personnel and equipment.
Operating on a reliable 12V DC power supply, the monitor requires minimal maintenance and ensures uninterrupted operation under various conditions. It is designed to withstand harsh environments with a temperature range of -20°C to +50°C and high humidity up to 95% RH, making it suitable for a wide array of industrial applications.
Compact and lightweight at 200mm x 100mm x 50mm and weighing just 0.5kg, the JYM-S2 is easy to install and integrates seamlessly into existing electrical systems. Its straightforward design and intuitive interface facilitate quick setup and operation, enabling technicians to focus on more critical tasks.
In summary, the EMERSON JYM-S2 Insulation Monitor is a vital tool for ensuring the longevity and safety of electrical systems. By leveraging its advanced monitoring capabilities, users can prevent costly breakdowns, reduce downtime, and maintain optimal system performance.
