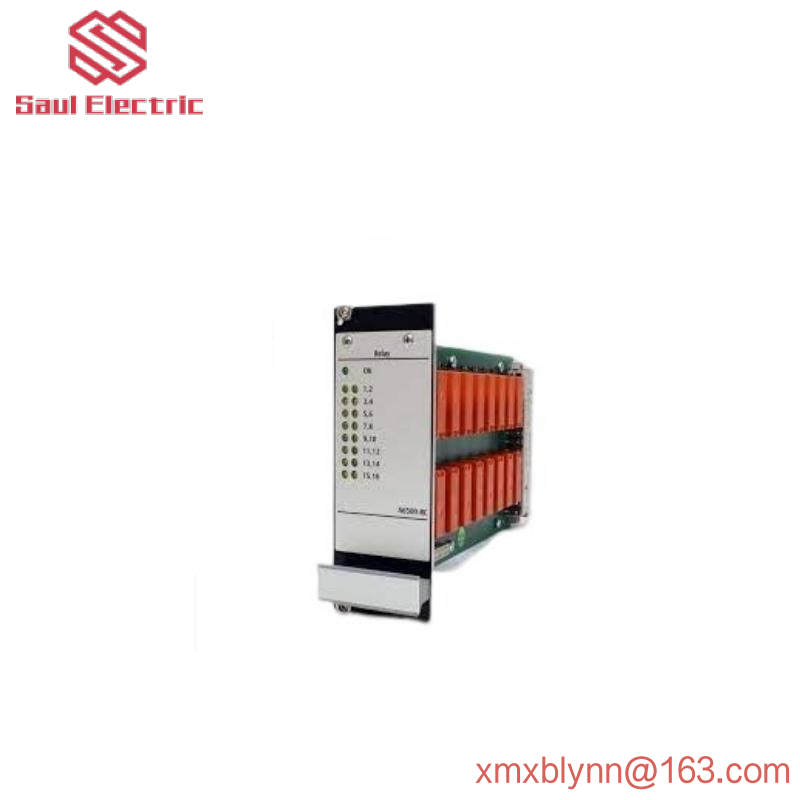

EMERSON A6500-RC 16-Channel Output Relay Module Specifications

Model:A6500-RC

Channels:16

Relay Type:SPST

Contact Rating:10A @ 24VDC

Operating Voltage Range:85-264V AC / 100-375V DC

Operating Frequency:50Hz

Relay Operating Life:10,000,000 cycles

Relay Contact Resistance:≤ 100mΩ

Isolation Voltage:2000V AC

Dimensions:120mm x 80mm x 28mm

Operating Temperature:-20°C to +85°C

Storage Temperature:-40°C to +100°C

Input Type:Dry contact

Output Type:Relay

Protocol Compatibility:MODBUS, CANopen, DeviceNet

Power Supply:Internal power supply, 12V DC

    Introducing the EMERSON A6500-RC 16-Channel Output Relay Module Specifications, a robust and reliable solution for your industrial control needs. This module is equipped with 16 SPST relays, providing precise control over up to 16 circuits or devices simultaneously.

    With an operating voltage range from 85-264V AC and 100-375V DC, this module ensures compatibility across a wide range of industrial settings. It features a relay operating life of 10 million cycles, ensuring longevity and reliability in continuous operation environments.

    Each relay has a contact rating of 10A at 24VDC, offering sufficient current handling capacity for most industrial applications. The low contact resistance of ≤ 100mΩ ensures quick switching speeds and reduced energy loss.

    Equipped with 2000V AC isolation voltage, this module ensures safety and protection against electrical hazards. Its compact dimensions of 120mm x 80mm x 28mm make it easy to integrate into any existing system.

    Operable within a temperature range of -20°C to +85°C, this module is designed for both indoor and outdoor use. With storage temperatures ranging from -40°C to +100°C, it can withstand extreme environmental conditions.

    For seamless integration with modern industrial networks, the A6500-RC supports MODBUS, CANopen, and DeviceNet protocols. It comes with an internal 12V DC power supply, eliminating the need for external power sources.
