Module Type:Digital Input Module
Brand:B&R
Model:DI426
Channels:16 Channels
Input Voltage Range:10…30 VDC
Input Current per Channel:Up to 10 mA
Response Time:0.5 ms
Protection Rating:IP20
Operating Temperature Range:-25°C to +70°C
Power Consumption:2.5 W
Connector Type:Push-in terminals

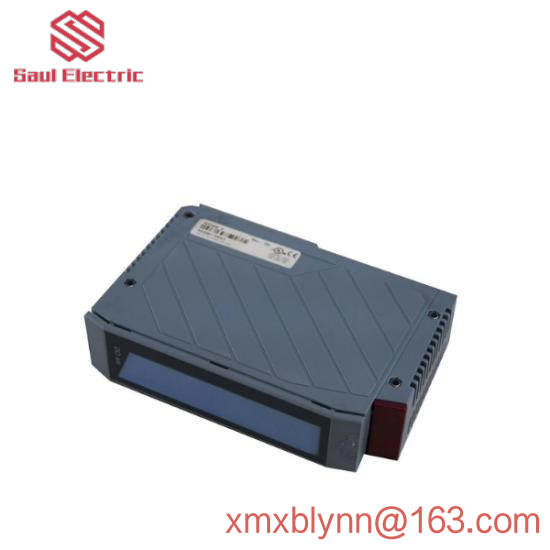

The B&R DI426 Digital Input Module is an essential component for industrial automation systems. Designed with robust engineering principles, this module ensures reliable and efficient signal processing. Each channel can handle up to 10 mA of current, providing a wide range of input voltage options from 10 to 30 VDC. Its quick response time of 0.5 ms makes it suitable for real-time control applications. The module is equipped with push-in terminals for easy installation and maintenance. Furthermore, the B&R DI426 features a protection rating of IP20, ensuring safe operation in various environments. The operating temperature range from -25°C to +70°C allows for deployment in harsh conditions. With its low power consumption of just 2.5 W, the B&R DI426 is an energy-efficient solution for industrial applications.
