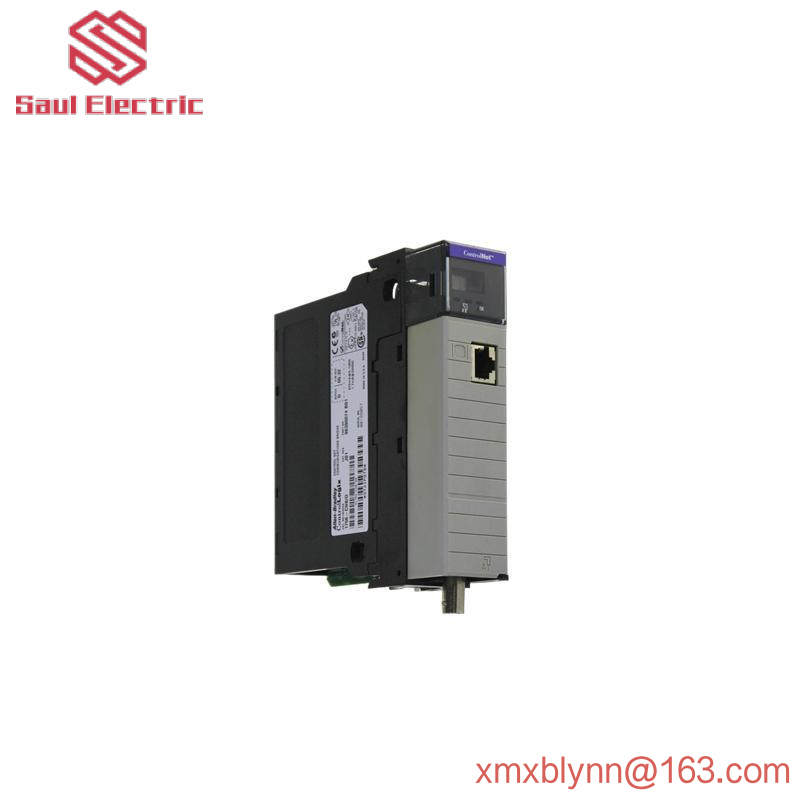

Allen-Bradley AB 1756-CNB Bridge Module – Industrial DeviceNet Communication

Model Type:Bridge Module

Model Number:1756-CNB

Manufacturer:Allen-Bradley

Communication Protocol:DeviceNet

Operating Voltage Range:24V DC

Data Transfer Rate:Up to 1 Mbps

Number of Inputs:256 Digital Inputs

Number of Outputs:16 Digital Outputs

Enclosure Type:Ruggedized Panel Mount

Temperature Range:-20°C to +70°C

Humidity Range:0% to 95% Non-condensing

RFI/EMI Compliance:EN 50121-4-2

Power Consumption:Max 12W

Dimensions:105mm x 105mm x 95mm

Connection Type:DB9 Connector

    Integrating advanced communication capabilities, the Allen-Bradley AB 1756-CNB Bridge Module is engineered for seamless integration with DeviceNet devices and ControlLogix systems, ensuring optimized data flow and enhanced operational performance in industrial environments.

    Crafted with durability in mind, this module features a ruggedized panel mount design, enabling it to withstand harsh industrial conditions without compromising on functionality.

    With its extensive input/output capacity, the AB 1756-CNB Bridge Module supports a broad range of applications, facilitating efficient data acquisition and control in diverse industrial settings.

    Adhering to stringent international standards for electromagnetic compatibility (EMC), the module ensures reliable operation in environments subject to radio frequency interference (RFI) and electromagnetic interference (EMI).

    Easy to install and maintain, the Allen-Bradley AB 1756-CNB Bridge Module simplifies the integration process, allowing for quick setup and minimal downtime during installation or maintenance activities.
