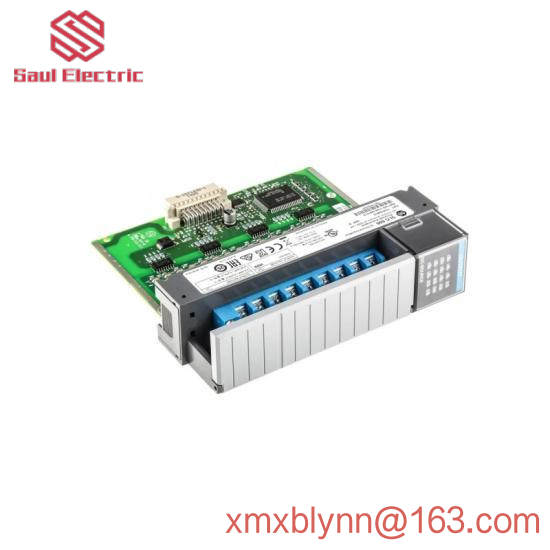

Allen Bradley 1746OB16 Digital DC Output Module

Model Type:SLC500

Model Number:1746-OB16

Manufacturer:Allen Bradley

Digital DC Output:Yes

Number of Channels:16

Input Voltage:24 VDC

Output Voltage Range:10 – 50 VDC

On-State Voltage Drop:1.2 V

Off-State Output Leakage:1 MA

Load:1 MA

Current Rating:{“Backplane”:”0.28 A”,”Continuous Current Per Output”:”0.25 A at 60°C”,”Continuous Current Per Module”:”4 A at 60°C”}

Isolation:{“Communication Circuits”:”500 VDC”,”Backplane”:”1500 VAC”}

Processor:SLC 500

Enclosure Type:Open Type

Mounting Method:Chassis

Temperature Rating:0 – 60°C

Environmental Conditions:5 – 95% humidity

    Unmatched precision in controlling and monitoring industrial processes with our Allen Bradley 1746OB16 Digital DC Output Module. This module is specifically engineered for demanding environments requiring high reliability and performance.

    Featuring 16 channels of versatile output, it ensures efficient control over various actuators, sensors, and other devices, enhancing system efficiency and productivity.

    With an on-state voltage drop of 1.2V and an off-state leakage of 1mA, this module ensures minimal power loss, providing consistent performance even under varying load conditions.

    The robust isolation measures guarantee safety and prevent interference between different parts of your automation system, ensuring seamless operation.

    Equipped with a powerful SLC 500 processor, it delivers exceptional computational speed and accuracy, making it suitable for complex control tasks.

    The open type enclosure allows for easy integration into existing systems without compromising on compactness or functionality. The chassis mounting option ensures secure installation in diverse industrial settings.
