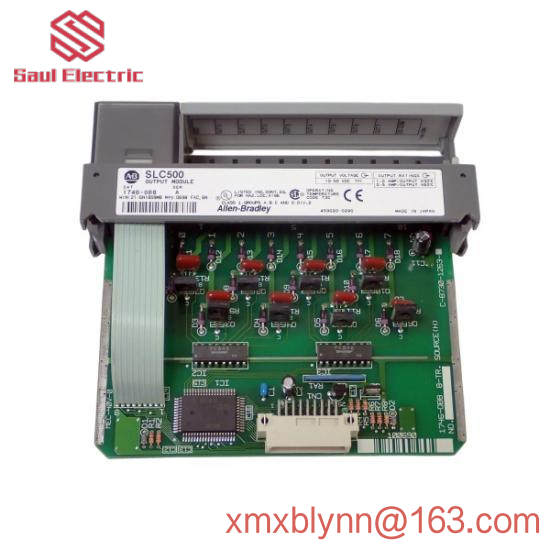

Allen Bradley 1746-OB8 Output Module, SLC 500, DC Output

In stock

The Allen Bradley 1746-OB8 Output Module for SLC 500 offers high performance and robustness for industrial control applications, ensuring precise control and reliability in demanding environments.

Model:1746-OB8

Manufacturer:Allen Bradley

Type:Output Module

Subtype:SLC 500

Channels:8

Output Type:Digital

Voltage Range:5 – 50 VDC

On-State Voltage Drop:1.2 V

Off-State Output Leakage:1 MA

Load:1 MA

Current Rating:Continuous: 0.25 A at 60°C per output, Total: 8 A at 60°C per module

Isolation:Communication circuits: 500 VDC, Backplane: 1500 VAC

Environmental Conditions:Temperature: 0 – 60°C, Humidity: 5 – 95%

Enclosure:Open Type

Mounting:Chassis

Enclosure Protection:IP20

Engineered for seamless integration into Allen Bradley’s SLC 500 system, the 1746-OB8 module boasts 8 digital output channels for precise control over industrial processes.

Featuring a wide operating voltage range of 5 to 50 VDC, this module ensures compatibility with diverse industrial applications, delivering consistent performance under various conditions.

With an on-state voltage drop of just 1.2V and off-state leakage current less than 1mA, the 1746-OB8 provides minimal power consumption and maintains signal integrity.

Capable of handling a maximum load of 1 mA per channel, this module supports a wide range of load types and sizes, enhancing its adaptability across different industrial setups.

Rated for continuous operation at a current of 0.25 A per output and a maximum of 8 A per module at 60°C, the 1746-OB8 ensures reliable performance even in demanding environments.

Designed for open type enclosures, the module allows for easy installation and maintenance, further enhancing its practicality in industrial settings.

1746-OB8 Output Module SLC 500
