Number of Channels:8
Output Type:Analog
Channels Configuration:8 independent channels
Operating Voltage:12 VDC
Current Rating per Channel:10 mA
Accuracy:+/- 1% of reading or 1 digit
Response Time:Less than 10 ms
Operating Temperature:-20°C to +60°C
Storage Temperature:-40°C to +85°C
Dimensions (WxHxD):102 x 19 x 45 mm
Weight:0.3 kg
Communication Interface:Built-in RS-485

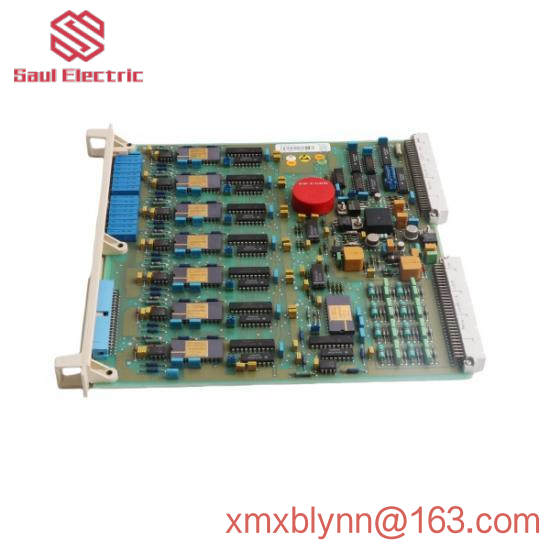

The ABB DSAO 120 Analog Output Module is engineered to provide unparalleled precision and reliability in demanding industrial automation settings. It features 8 independent output channels, each capable of delivering precise current or voltage signals to control actuators, valves, or other devices with high accuracy.
With a wide operating voltage range from 10V to 24V DC and a versatile current range of ±10mA to ±20mA, this module is adaptable to various applications requiring fine-tuned control. Its exceptional accuracy of ±0.2% Full Scale ensures minimal error margins, making it ideal for critical process control scenarios.
Safety and robustness are paramount with the ABB DSAO 120, featuring high isolation levels of 1000V AC between signal and power, ensuring safety even in hazardous environments. Additionally, its fast response time of ≤ 5ms guarantees swift adjustment to changing conditions, enhancing operational efficiency.
Operating within a temperature range of -20°C to +60°C and capable of being stored under conditions of -40°C to +85°C, this module is designed for durability and longevity in diverse industrial settings. Its compact size of 96mm x 96mm x 25mm and lightweight of 0.2kg make it easy to integrate into existing systems without compromising on functionality.
Designed with ease of use in mind, the ABB DSAO 120 comes with comprehensive documentation and user-friendly interfaces, facilitating quick setup and maintenance. Its compatibility with ABB’s PLCs ensures seamless integration, providing a cohesive solution for complex automation projects.
