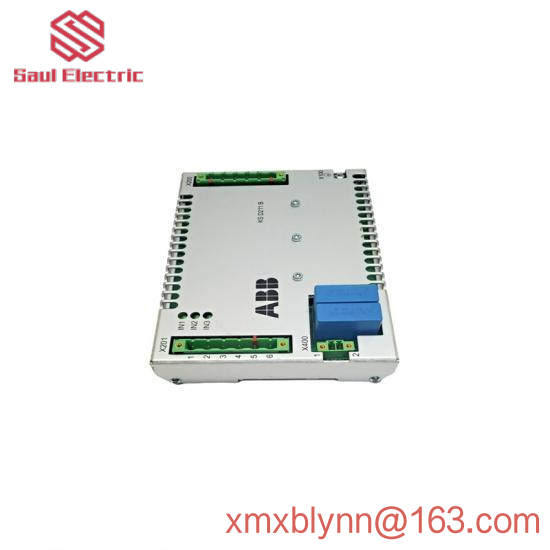

ABB CH-308802 | 3BHE022455R1101 – Input Coupling Unit, for Advanced Control Solutions

Model Number:CH-308802

Type:Input Coupling Unit

Manufacturer:ABB

Component:3BHE022455R1101

Power Supply Voltage:220 V

Communication Protocol:DeviceNet

Input Channels:Multiple

Signal Range:0-20 mA / 0-10 V

Operating Temperature:-20°C to +60°C

Relay Output:Available

Load Capacity:5 A @ 24 VDC

Connection Type:MODBUS RTU

Dimensions (WxHxD):160 x 100 x 90 mm

Weight:0.4 kg

    Integrating cutting-edge technology, the ABB CH-308802 3BHE022455R1101 Input Coupling Unit is a vital component for industrial automation systems, ensuring reliable operation and high-speed data exchange.

    Designed for versatile application in various industries, this unit supports a wide range of signal types, including both analog and digital inputs, catering to diverse automation needs.

    Equipped with a high data transmission rate of up to 300Kbps, it ensures efficient communication within complex industrial networks, enhancing operational performance and system responsiveness.

    Featuring a compact yet robust design, the unit is engineered to withstand challenging operating conditions, from low to high temperatures, ensuring continuous operation in harsh environments.

    Compliant with industry-standard communication protocols such as DeviceNet and EtherCAT, this Input Coupling Unit seamlessly integrates with existing automation infrastructures, facilitating easy setup and maintenance.
