GE IS200TBAIS1CED: Advanced Automation Control Module

2025-01-08 BY jonson

IS200TBAIS1C|Analog input/output terminal board

The IS200TBAIS1C printed circuit board is manufactured by General Electric for the Mark VIeS family of turbine control systems and turbine control system products. This IS200TBAIS1C printed circuit board, or PCB for short, was actually originally mass-produced by GE Energy, the alternative Energy gear subsidiary of the larger GE Automation Industrial Production. This IS200TBAIS1C PCB is better defined by the functional product description specified in its instruction manual as an analog input/output terminal board. The IS200TBAIS1C analog input/output terminal board is actually a modified version of the previously developed Mark VIeS turbine control system family; Modify the IS200TBAIS1 parent board by adopting the only Level C functional product revision.

Hardware tips and specifications

The IS200TBAIS1C analog input/output terminal board has a number of unique and interesting hardware features in its overall functional assembly, all of which contribute to its intended function in the Mark VIeS series assembly. The main feature of the IS200TBAIS1C board is that it provides 10 unique analog inputs and 2 analog outputs for the larger Mark VIeS controller assembly, all input signals can be configured as voltage or current signals with the IS200TBAIS1C analog I/O terminal board. The IS200TBAIS1C board is used in tandem with one to three compatible YAIC input/output packages that were developed for use in the same Mark VIeS turbine control system family. Now, some of the features of the IS200TBAIS1C analog I/O terminal board have been discovered to put its otherwise confusing set of hardware component inclusions fully in context, starting with the various input and output types accepted, including:

2 -, 3 -, and 4-wire transmitters simulate inputs
Externally powered transmitter simulates input
±5 V, ±10 V DC voltage analog input
0-20 mA analog output
GE IS200TBAIS1CED: Advanced Automation Control Module
While the various input and output types employed by the IS200TBAIS1C analog input/output terminal board are explained in great detail in the original product-centric instruction manual material, not much else is known about the IS200TBAIS1C PCB. In view of this, a breakdown of the functional IS200TBAIS1C product number is essential, starting with its IS200 series label. The IS200 series label beginning with the IS200TBAIS1C functional product number has the dual naming responsibility for this analog input/output terminal board; It is detailed as a common assembly model Mark VIeS series PCB manufactured at GE Energy’s plant site in Salem, Virginia. The IS200 series label is followed by the IS200TBAIS1C functional product number by the TBAI functional acronym; Create a convenient conversational or promotional shorthand alternative to lengthy IS200TBAIS1C product numbers. Additional information available by breaking down this IS200TBAIS1C functional product number includes the GE printed circuit board’s Class S special PCB coating style, its first group of Mark VIeS series groupings and its single Class C functional revision.

GE Fanuc IS200TBTCH1C Thermocouple Input Terminal Board - Precision Control in Industrial Automation

2025-01-08 BY jonson

IN Industry trends

IS200TBTCH1C|Thermocouple input terminal board

Ge’s IS200TBTCH1C printed circuit board product was originally designed and manufactured specifically for placing in its Mark VI turbine control system family. The IS200TBTCH1C device belongs to the Mark VI family, which should be indicated by its full extended product family name section, for a set of possible functional applications that exist specifically in the control and management systems of GE compatible gas, steam and wind turbine automatic drive components. Given that the Mark V series has not yet introduced alternative energy based wind turbine applications, this must be considered a greater functional advance than the previous industry-standard Mark V turbine control system series.

Hardware tips and specifications

The Thermocouple Input (TBTC) terminal board IS200TBTCH1C is part of the Mark VIe series produced by General Electric. The board will accept T, S, K, J and E main Type 24 thermocouple inputs. If this board is used with a PTCCH2 board in a simplex system, the board can accept three additional thermocouple inputs, labeled R, B, and N. There are two TBTC models, this model is IS200TBTCH1C indicating that it has two DC type connectors and is only used for simplex applications. The board will use two PTCC packages, thus allowing 24 inputs. The IS200TBTCH1C device here on the IS200TBTCH1C personalised product page is mainly reminiscent of a visual inspection of the IS200TBTCH1C product itself, due to the small amount of material available for its online instruction manual. Therefore, the IS200TBTCH1C functional product number itself is really a good source of IS200TBTCH1C Board hardware component and component specification information, as it encodes various related IS200TBTCH1C details through a series of continuous functional naming components.

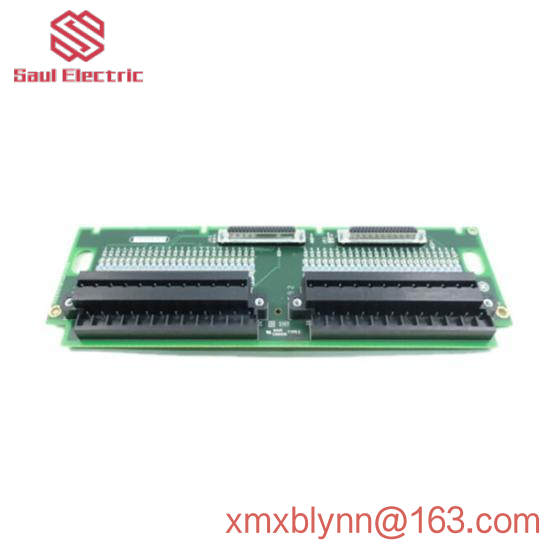

GE Fanuc IS200TBTCH1C Thermocouple Input Terminal Board - Precision Control in Industrial Automation
For example, the IS200TBTCH1C product number begins with a dual-function IS200 series label, which entrusting the normal Mark VI series components of the IS200TBTCH1C PCB and its domestic manufacturing location. Some of the other IS200TBTCH1C details embedded in this media include:

TBTC Functional Products Acronym
The first group of Mark VI series groups
Three resistant PCB coating
Grade C Functional Product revision
When connecting the Mark VIe Series IS200TBTCH1C board, the I/O package used will plug directly into the TBTC Type J connector, and the cable required will also depend on the level of redundancy required for the board. A feature of the board is that the thermocouple input on the board can be ungrounded or grounded. The input can be up to 984 feet from the turbine control panel. An I/O processor attached to the device performs analog-digital linearization and conversion of the individual thermocouple inputs. The thermocouple input of the IS200TBTCH1C board can support a wide input range from negative 8 volts to positive 45 volts. The board has a cold junction and can operate in a potential range of minus 22 degrees to 149 degrees Fahrenheit. Cold end or CJ signals can be monitored by entering the signal space.

GE IS200TREAH2AED Mark VI Control Module

2025-01-08 BY jonson

IN Industry trends

IS200TREAH2AED|Input/output module

The IS200TREAH2AED module is part of the Speedtronic turbine control system, designed to control and monitor turbine operation in a variety of industrial environments. It integrates with other modules within the system to control turbine speed, temperature, pressure and other basic parameters for safe and efficient turbine operation. This module typically performs critical functions related to fan protection, control, and diagnostics.

It is designed for high reliability and real-time performance in environments where uptime and safety are critical. The IS200TREAH2AED is commonly used in gas and steam turbines to provide continuous monitoring and control to prevent anomalies, optimize performance and ensure efficient energy production.

Product parameters and specifications:
While specific technical details may vary depending on system configuration and installation, general parameters include:

Voltage input: DC or AC input is usually required, depending on the specific system installation.
Power consumption: varies according to the load and operating conditions of the turbine system.
Operating temperature range: Suitable for industrial environments, the rated temperature is usually 0°C to 70°C (32°F to 158°F).
Type of installation: The module is designed for rack-mount or modular installation within a turbine control system cabinet.
Connectivity: The IS200TREAH2AEDs typically communicate with other parts of the turbine control system using bus communication protocols such as Ethernet, serial communication, or other proprietary GE interfaces.
Control functions: Handles turbine speed control, temperature regulation, load balancing, and safety functions.
Diagnostics: Includes self-diagnostics for fault detection and troubleshooting.

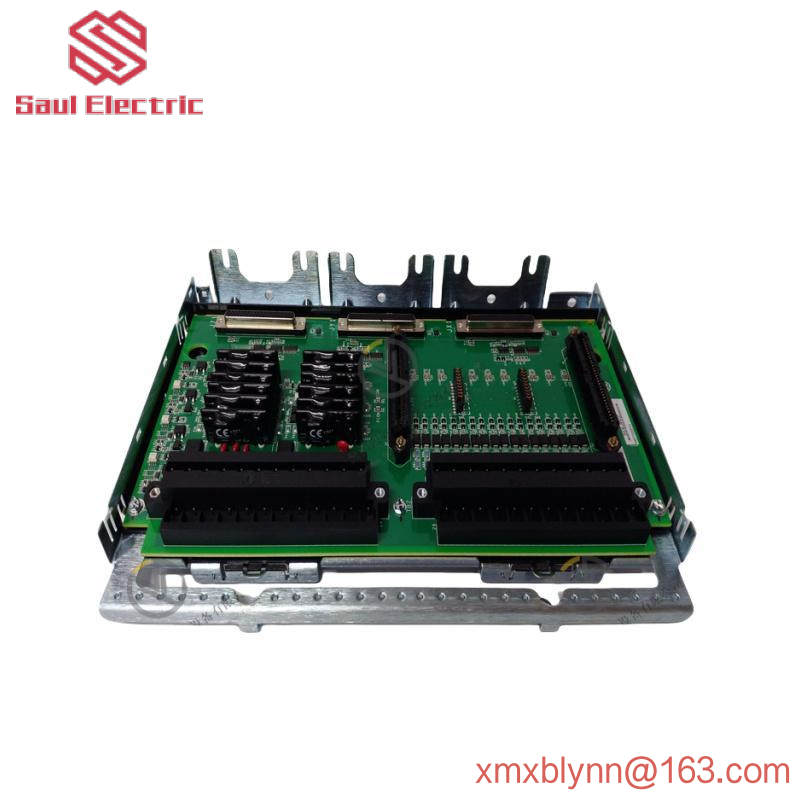

GE IS200TREAH2AED Mark VI Control Module
Main features:
High reliability of turbine control and protection.
Integrated communication capabilities for system diagnosis and troubleshooting.
Enhanced safety features to prevent turbine failure.
Compatible with GE’s Speedtronic turbine control platform.
Modular design for easy installation and maintenance.
Product use:
The IS200TREAH2AED module is used in a variety of turbine control applications:

Power generation: It plays a vital role in the control and operation of internal combustion and steam turbines in power plants, ensuring optimized turbine performance and minimal downtime.
Industrial applications: The module is used in industries where turbines are a critical component of operations, including chemical plants, refineries and manufacturing facilities.
Turbine protection: The IS200TREAH2AED ensures that turbines are protected from abnormal conditions such as excessive speed, overshoot or extreme temperature levels.
Maintenance and troubleshooting: The module is used as part of a large control system to facilitate diagnosis, repair and monitoring of system performance.

GE IS200TDBTH6ACD - Printed Circuit Board Component for Mark VI Speedtronic Series

2025-01-08 BY jonson

IN Industry trends

IS200TDBTH6ACD|Separate simplex board

IS200ERIOH1AAA parameter description and IS200JPDDG1AAA industrial control automation scheme gas turbine main control system

The main control system refers to the continuous regulation system of the gas turbine. The single-axis gas turbine control system sets several main control systems that automatically change the FUEL consumption rate of the gas turbine (see Table 11-1) and the corresponding output instructions of each system -FSR(FUEL)

STROKEREFERENCE fuel stroke reference), in addition to the manual control of fuel stroke reference.
GE IS200TDBTH6ACD - Printed Circuit Board Component for Mark VI Speedtronic Series

The above four IS200TDBTH6ACD, IS200TDBTH6ABC, IS200ERIOH1AAA IS200JPDDG1AAA FSR quantities enter the minimum value selection gate, and select the minimum value of the six FSRS as the output, which is used as the FSR control signal for actual execution at this time.

The start control system only controls the fuel Gf of the gas turbine from the start of ignition until the completion of the start procedure (in the Mark-V system FSRSU is output via the start control system). Fuel requirements vary widely during start-up of gas turbines. Its maximum value is limited by compressor surge (and sometimes by turbine overtemperature), and its minimum value is limited by flameout limit or zero power. This upper and lower limit varies with the gas turbine speed, and the range between these upper and lower limits is narrowest at trip speed.

GE IS200TBCIH1CCD: Contact Input with Group Isolation for Advanced Industrial Control

2025-01-08 BY jonson

IN Industry trends

IS200TBCIH1CCD|Turbine control PCB board

The IS200TBCIH1CCD is a contact input with a set of isolation plates. It is used in Mark VI Speedtronic systems. The IS200TBCIH1CCD is also available for MKVIe systems.

The IS200TBCIH1CCD connects to VTCC/VCRC or PDIA I/O packages, depending on the system it is used on. The board accepts 24 dry contact inputs. These are connected to the board terminals. Each has 12 barrier blocks. The board has a nominal floating excitation voltage of 125 VDC. Range from 100 to 145 Vdc.

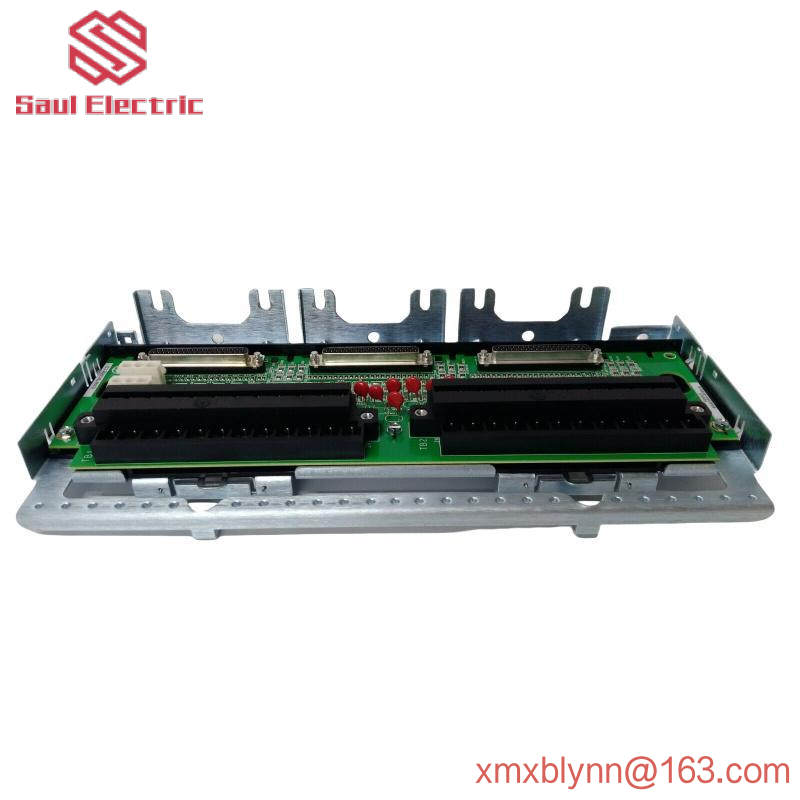

GE IS200TBCIH1CCD: Contact Input with Group Isolation for Advanced Industrial Control

The IS200TBCIH1CCD has three D-shell connectors. These allow the connection of cable connectors. The connector is a 37-pin connector with latch fasteners.

Terminals on IS200TBCIH1CCD usually use #12 AWG wires per connection point. When maintenance is required, you can remove the wiring terminals from the board.

GE IS200TRTDH1CCC: Industrial PC Board for Precision Control

2025-01-08 BY jonson

IN Industry trends

IS200TRTDH1C|Mark VI printed circuit board

The IS200TRTDH1C is a circuit board component manufactured by General Electric for the Mark VI system. The Mark VI is part of the Speedtronic family for the management of heavy-duty gas and steam turbines. Mark VI provides alert displays, process variable trends, and point control displays through its operating interface.

The IS200TRTDH1C is used as an RTD input terminal board. Physically, the board consists of two terminal terminals (each with 24 screws connected), two 37-pin cable connectors (female), and a bank of capacitors. The board’s code is “6BA00”. There is a shield strip on the left edge that connects directly to the side of the terminal. The plate has two factory-drilled oval notches for screw mounting, as well as several notches along the edge of one plate.

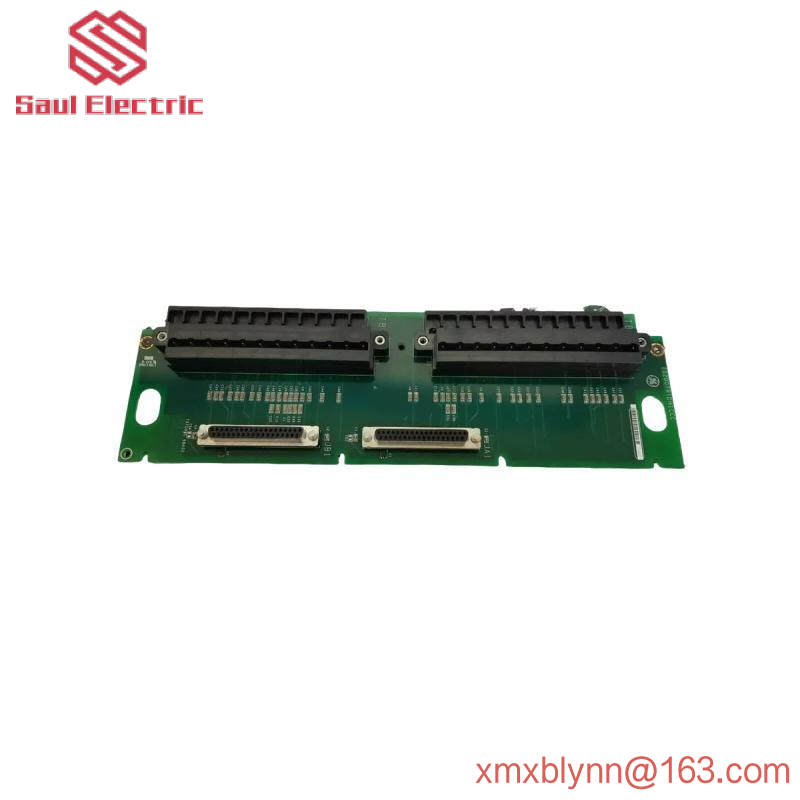

GE IS200TRTDH1CCC: Industrial PC Board for Precision Control

The IS200TRTDH1C is connected to the VRTD board and communicates via two cable connections. The I/O board converts the TRTD input into a temperature value (in digital form), which is then transmitted to the controller. The IS200TRTDH1C is a simplex board and does not support TMR applications.

The IS200TRTDH1C has no jumper or hardware Settings. However, the board does have a hardware limit check function based on preset high/low levels. It also has a software system limit check for generating alerts; These limits can be configured. Check the resistance of each RTD and compare it to its correct value. If it is high or low, a fault occurs. In addition, each connector located on the board has its own ID device, which creates incompatible failures that do not match.

GE IS200VAICH1CBA: Precision Engineered Turbine Control Module

2025-01-08 BY jonson

IN Industry trends

IS200VAICH1C|Analog I/O board

How much load resistance does this IS200VAICH1C support?

When it drives a 20 mA output, the 1000 foot end of the IS200VAICH1C #18 wire supports load resistors up to 500.
What are the various LED indicators on this IS200VAICH1C?

The IS200VAICH1C has three LED indicators located on the top of the IS200VAICH1C. These leds on IS200VAICH1C are indicated by RUN, FAIL, and STAT on IS200VAICH1C.
What are the firmware options for IS200VAICH1C?

The firmware of the IS200VAICH1C includes a gas turbine compressor stall detection, which is performed at a frequency of 200 Hz on the IS200VAICH1C.
Which specific Mark VI series manual does the IS200VAICH1C use?

You can use the manual GEH-6421 with IS200VAICH1C. This manual is a Mark VI guide to turbine control systems. While this manual is not specific to IS200VAICH1C, the manual specifically deals with VAIC boards and IS200VAICH1C from page 35 of the manual.

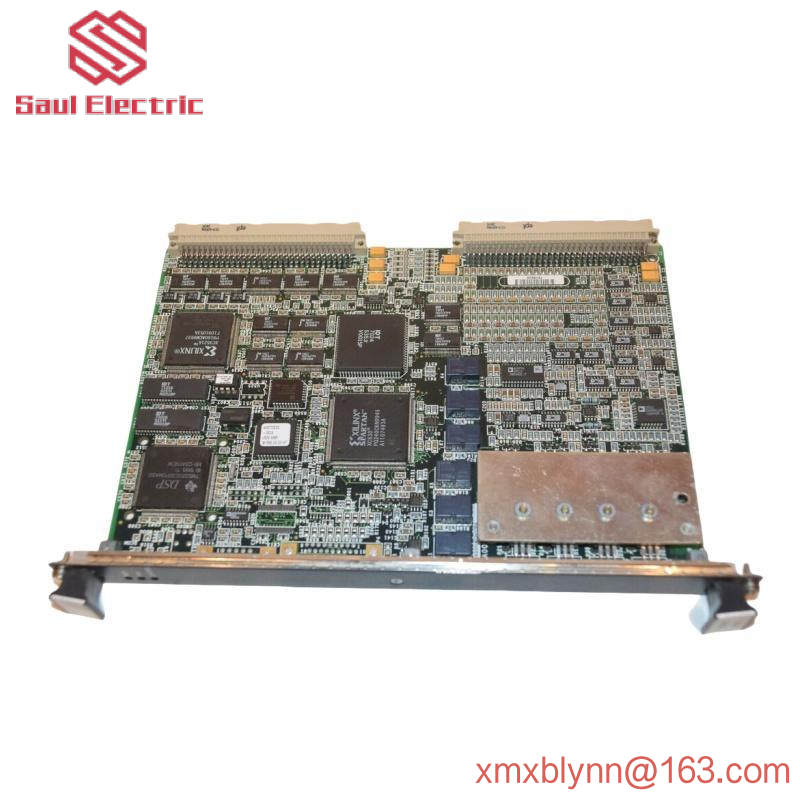

GE IS200VAICH1CBA: Precision Engineered Turbine Control Module
About IS200VAICH1C
The IS200VAICH1C board assembly is part of GE’s Mark VI turbine control system. Specifically, the Mark VI turbine control System family is one of the most complex and advanced Speedtronic systems ever created by GE. This IS200VAICH1C device is considered a versatile model of the Mark VI turbine control system family as it can be used to create TMR (Triple modular redundancy) and simplex control systems for industrial turbine systems (gas or steam). However, most Mark VI components are now in their old state and are no longer supported by Oems. We at AX Control do our best to keep these products in our on-hand, ready-to-ship inventory so that we can fill orders faster when you need them most. As we all know, this larger Mark VI turbine control system family for the IS200VAICH1C device must be considered a functional upgrade over the industry-standard Mark V turbine control system family previously with similar full extension series titles. Because the Mark V Series only has a specific set of possible functional applications in the control and management systems of GE compatible gas turbine and steam turbine components.

Hardware tips and specifications

The IS200VAICH1C is used in conjunction with a patch board that can accommodate 10 inputs and 2 outputs. The board and its corresponding terminal board operate within the Mark VI VME processor rack and communicate with other boards within that location. Each plate is individually identifiable. The IS200VAICH1C board consists of a single wide front panel that includes three status leds and two clamps that remain in place once the device is installed into the rack system. The back edge of the board has two horizontal connectors. The circuit board itself consists of capacitors, resistors, processor chips, and other ics, transistors, and diodes. Most components are marked with the original manufacturer’s logo and their reference names. The code on the surface of the board will help with the positioning and wiring of the board. This IS200VAICH1C product is edited from the base product of its original Mark VI series of functional roles by installing an atypical Level C revision.

Installation and handling procedures are available through GE’s original manual or user guide. Please follow all safety procedures recommended in these publications. Read and understand the installation procedure before unpacking new components. This particular IS200VAICH1C printed circuit board product product does not usually appear in large quantities of original printed instruction manual material online, which is most likely due to its status as one of the more copyrighted GE logo product families since its introduction. Previously it followed a similar full extension series name to the Mark V turbine control system family. Largely due to the lack of documentation, the IS200VAICH1C functional product number itself can actually be isolated as a good supplemental source of IS200VAICH1C Board hardware component and component specification information. Because it encodes various related IS200VAICH1C Board details through a series of continuous functional naming segments. For example, the IS200VAICH1C product number begins with an iteration of the dual-function IS200 series label, which specifies the normal Mark VI series components of the IS200VAICH1C PCB, as well as its more standard domestic original manufacturing location. Some other relevant IS200VAICH1C Board qualities demonstrated through this medium include:

VAIC Functional Products Acronym
The first group of Mark VI series groups
Conformal PCB coating style
The only C-level revision

GE Mark VI IS200VVIBH1CAC Printed Circuit Board: Precision Control for Industrial Applications

2025-01-08 BY jonson

IN Industry trends

IS200VVIBH1C|VME vibration board

Where is this IS200VVIBH1C VME vibrating plate product produced?

The IS200VVIBH1C VME vibrating board PCB was manufactured at GE’s factory site in Salem, Virginia.
What style Mark VI series version does this IS200VVIBH1C VME Vibration Board PCB have?

This IS200VVIBH1C VME vibrating board PCB uses the only Class C feature product revision.
About IS200VVIBH1C
The IS200VVIBH1C is a circuit board component manufactured by GE for the Mark VI system. The Mark VI was one of the steam and gas turbine management systems released by GE under the name Speedtronic in the 60s, 70s, 80s and 90s. As one of the last systems to be released in the series, Mark VI is also one of the most advanced. It is built with a TMR (Triple Redundant Modularity) architecture and has a PC-based HMI (Human Machine interface) that runs on the Windows platform. The HMI PC includes software specifically designed for turbine management, including fully programmable maintenance tools.

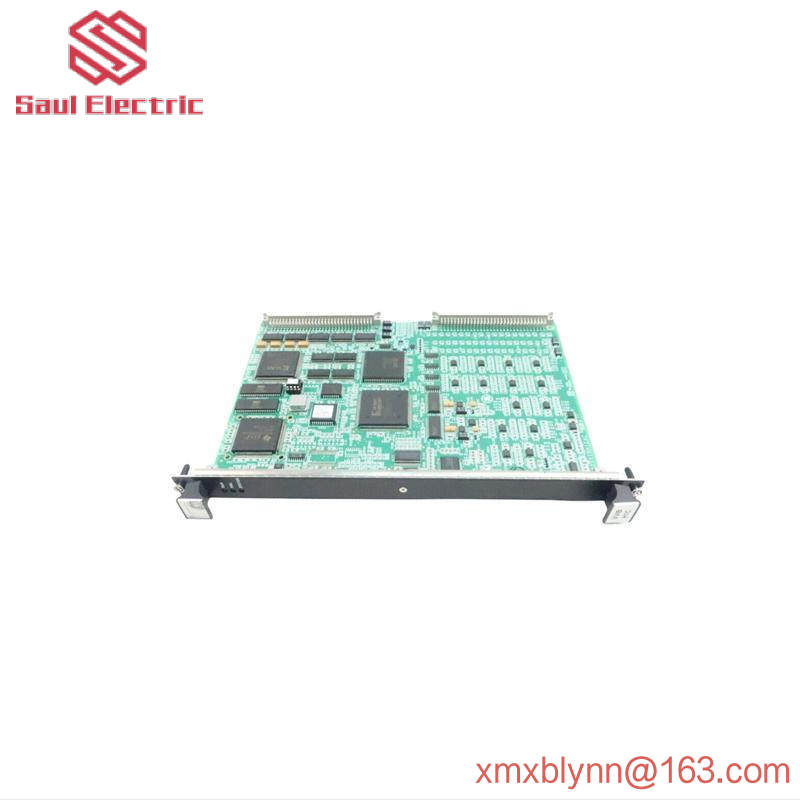

GE Mark VI IS200VVIBH1CAC Printed Circuit Board: Precision Control for Industrial Applications

Hardware tips and specifications

The IS200VVIBH1C is used as a vibration monitoring card and can handle vibration probe signals from up to 14 probes connected to DVIB or TVIB terminal boards. These are used to measure differential expansion, rotor eccentricity, vibration, or rotor axial position. For additional information on probe functions and Settings, see the Mark VI Turbine Control System Guide (GEH-6421). The IS200VVIBH1C has a single-slot panel that connects to a component-dense circuit board. The panel has only three components, all of which are located at the very top of the cover; These are LED indicators labeled Run/Fail/Status. The surface of the IS200VVIBH1C consists of two backplane connectors (P1 and P2) located on the back edge of the board. The board has four other connectors designed to conduct wires and points.

The surface of the board has resistors, diodes, capacitors and inductors/beads. Some of these components also appear on the back of the board. Integrated circuits located on the IS200VVIBH1C include FPGA, RAM and SRAM chips. The installation process can be found in the GE publication above. Any capacitors, resistors, diodes, transformers, or integrated circuits on the surface of the base printed circuit board of this IS200VVIBH1C VME vibration board product are actually installed as part of the standard voltage suppression and regulation strategy. This strategy is standardized into the Mark VI series of the IS200VVIBH1C VME vibration board products. The IS200VVIBH1C VME Vibration Board device’s IS200VVIBH1C VME Vibration Board feature product number is important for the research purposes of this IS200VVIBH1C VME Vibration Board personalized product page because it was actually specifically designed by General Electric, Some key IS200VVIBH1C qualities of VME vibrating board equipment are represented through a series of continuous functional naming blocks. One of the blocks is the dual function IS200 series tag for this IS200VVIBH1C VME vibrating plate device, It indicates the normal Mark VI series assembly type of the IS200VVIBH1C VME vibration plate equipment and the domestic original manufacturing of the IS200VVIBH1C VME vibration plate product. Some other IS200VVIBH1C VME vibration board qualities are shown below, including:

VVIB functional products for short
Conformal PCB coating style
The first group of Mark VI series groups
Grade C Product revision

2025-01-06 BY jonson

IN Industry trends

IS200DTAIH1ABB|Analog input/output terminal board

What does conformal PCB coating include?

The conformation coating of the IS200DTAIH1ABB Simplex analog input/output terminal board is a thin layer of PCB protection for chemical applications that extends to the entire base PCB of the IS200DTAIH1ABB Simplex analog input/output terminal board device.
How is the IS200DTAIH1ABB Simplex Analog Input/Output Terminal Board installed?

This IS200DTAIH1ABB simplex analog input/output terminal board product is mounted on a DIN rail assembly as it has a plastic mounting backplane.
About IS200DTAIH1ABB
The IS200DTAIH1ABB is a GE component created for the Mark VI system. The Mark VI is a gas/steam turbine management system released under the Speedtronic family name. The series has been used in various iterations of turbine management since the 1960s. The Mark VI family of fan control systems comprising this IS200DTAIH1ABB Simplex analog input/output terminal board product must be described as a considerable functional improvement over the previous industry standard Mark V family of fan control systems with nearly the same full family name. Because the Mark VI series adds to the gas and steam turbine setups already adopted by the Mark V Series the possible functional applications of wind turbines with an alternative energy focus. The IS200DTAIH1ABB simplex analog input/output terminal board PCB product’s Mark VI turbine control system family was also welcomed as one of the final GE Mark product families due to its independent status. To use the patented Speedtronic control system technology in many products.
GE IS200DTAOH1ABA Control Module

Hardware tips and specifications

The Mark VI has Ethernet communication capabilities and includes onboard diagnostics (limit checks) in both hardware and software. The IS200DTAIH1ABB is a simplex analog input/output terminal board. It is a compact input board for analog signals. The board is mounted in a plastic bracket that allows the PCB to be mounted on the DIN rail. The board has 10 analog inputs and 2 analog outputs. The output is 0-20mA, but one can be configured for 0-200mA current by reconfiguring the jumper. The IS200DTAIH1ABB has a 37-pin connector with latch fasteners. This is labeled JR1. The board has a terminal board (TB1) with 48 screw connections. The terminal block is permanently installed on the circuit board. Terminal blocks usually use shielded twisted pair #18 AWG wire. Note that screws 43/44 are designated for ground (SCOM) connections. Ground cables should be as short as possible. The board has 21 jumper switches; These are labeled JP1A/B-JP10A/B (20) plus JP0. The board also includes a variety of capacitors, resistors, and integrated circuits, as well as four small panels. Jumpers on the board are used to configure current and voltage.

IS200DTAIH1ABB Technical support is provided by GE. For information about this PCB, its components, or installer, please refer to the manual, user guide, and data sheet. Unfortunately, for the IS200DTAIH1ABB Simplex Analog input/Output Terminal Board Personalization product page here, the IS200DTAIH1ABB Simplex analog input/Output Terminal board device is not surrounded by a lot of original printed online instruction manual material. Because the Mark VI turbine control system family faced a concerted series of copyright infringements in the years following the launch of its original GE product family. In this case, the IS200DTAIH1ABB Simplex analog input/Output terminal board function Product number itself may be introduced as an appropriate supplemental source of hardware component and component specification information for the IS200DTAIH1ABB Simplex analog input/Output terminal board. Because it indirectly asserts many related IS200DTAIH1ABB Simplex analog input/output terminal board hardware details through a series of continuous function naming elements. For example, the product number of the IS200DTAIH1ABB Simplex analog input/output terminal board product begins with the dual-function IS200 series label assembly number, The IS200DTAIH1ABB Simplex analog input/output terminal board product is a normal Mark VI series assembly version and its domestic original manufacturing location. Some other IS200DTAIH1ABB Simplex analog input/output terminal board details indicated by this medium include:

DTAI Functional Products acronym
The first group of Mark VI series groups
Conformal PCB coating style
Triple discount product revision form

2025-01-06 BY jonson

IN Industry trends

IS200DTAIH1ACC|Turbine control board

The IS200DTAIH1ACC is a turbine control panel for a variety of industrial applications, such as power generation, oil and gas, chemicals and pharmaceuticals. It is a microprocessor expansion board manufactured and designed by General Electric as part of the Mark IV control System. A microprocessor expansion board is a device used to extend the functionality of a microprocessor-based system. In turbine control systems, microprocessor expansion boards can be used to add additional input/output (I/O) functions to the control system. Turbine control systems typically use a microprocessor to control the operation of the turbine, and microprocessor expansion boards can be used to add additional I/O capabilities to the system, allowing more sensors and actuators to be connected. For example, the microprocessor expansion board can be used to add additional temperature sensors to the turbine control system.
GE IS200DTAOH1ABA Control Module

IS200DTAIH1ACC is a top-level file design algorithm, written in Verilog HDL language. Its main functions include signal acquisition, processing and control, as well as fan start and stop, load regulation and protection operations.
First of all, IS200DTAIH1ACC has strong signal processing capability. Through the A/D control module, the ADS8364 chip can be controlled for sampling, so as to obtain real-time data of voltage and current. This data is then fed into the Clarke transform module and the three-phase PLL module to perform the necessary transformations and demodulation.
Secondly, IS200DTAIH1ACC has powerful control function. The DSP outputs ud and uq through PI regulator, and after Park conversion, uα and uβ are obtained and sent to SVPWM module. In this module, an accurate PWM waveform can be generated by sector judgment and vector movement time calculation to control the operation of the turbine. In addition, in order to prevent the overmodulation phenomenon from distorting the output voltage waveform, the IS200DTAIH1ACC is equipped with an overmodulation module using the proportional reduction algorithm. At the same time, a dead zone control module is added to avoid direct passage between the upper and lower bridge arms. The addition of these modules significantly improves the stability and reliability of the system.
